Stern Pinball Flipper RAMP VUK ASSEMBLY #500-1100-00
Stern Pinball Flipper RAMP VUK ASSEMBLY #500-1100-00
Artikelnummer 500-1100-00
325,54 EUR
*
Sofort versandfertig
Inhalt
1 Stück
Grundpreis
325,54 EUR / Stück
* inkl. ges. MwSt. zzgl. Versandkosten
Stern Pinball Flipper RAMP VUK ASSEMBLY #500-1100-00

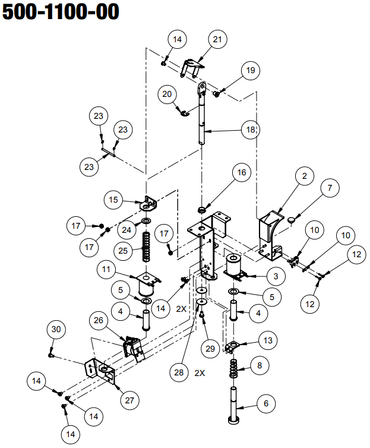

ASSEMBLY #500-1100-00 enthält:
- 1x 535-1750-00 RAMP VUK, BODY BRACKET
- 1x 515-1919-00 SCOOP, IRON MAIDEN CENTER RAMP
- 1x 090-5044-ND COIL 26-1200 - NO DIODE
- 2x 545-5076-01 COIL SLEEVE
- 2x 269-5002-00 SPRING WASHER
- 1x 515-7309-00 PLUNGER ASSEMBLY
- 1x 545-5105-00 RUBBER BUMPER
- 1x 266-5020-00 COMPRESSION SPRING-CONICAL
- 1x 180-5209-00 SUB MINIATURE SWITCH - SIM. ROLLER
- 1x 535-6539-00 SWITCH BODY PROTECT PLATE
- 1x 090-5001-XX COIL, 23-800, NO DIODE
- 2x 237-5937-02 SCREW, 2-56 X 1/2" HWH MS
- 1x 535-5203-03 COIL RETAINING BRACKET
- 6x 232-5300-00 SCREW, 8-32 X 1/4" PPH SEMS
- 1x 535-1752-00 BRACKET, COIL MOUNT
- 1x 545-5418-01 NYLINER - PLASTIC, 7/16"
- 3x 240-5005-00 6-32 NYLON STOP NUT
- 1x 515-1898-00 PLUNGER ASSY, RAMP VUK, IRON MAIDEN
- 1x 530-7834-00 PIN: KICKER ARM, AUTO-PLUNGER
- 1x 270-5005-00 RETAINING E-RING, 7/16" SHAFT OD
- 1x 535-1810-00 RAMP VUK, PIVOT PLATE
- 1x 530-1032-20 PIVOT PIN .125" DIA - 1.375" LENGTH
- 2x 270-5000-00 RETAINING E-RING, 1/8" SHAFT OD
- 1x 242-5081-00 WASHER - NYLON .75 OD x .44 ID
- 1x 266-5102-01 COMPRESSION SPRING
- 1x 515-1936-00 RAMP VUK, LATCH COIL ASSEMBLY
- 1x 535-1844-00 BRACKET, RAMP VUK LATCH
- 2x 242-5059-00 3/16 I.D. X 7/8 O.D. X .045 WASHER
- 1x 232-5401-00 SCREW, 10-32 X 3/8 PPH SEMS
- 1x 232-5301-00 SCREW, 8-32 X 3/8" PPH SEMS
| Art.-ID | 42436 |
| Zustand | Neu |
| Altersfreigabe | Ohne Altersbeschränkung |
| Varianten-ID | 500-1100-00 |
| Modell | 500-1100-00 |
| Hersteller | Stern Pinball Parts |
| Herstellungsland | USA |
| Inhalt | 1 Stück |
| Gewicht | 800 g |
| Netto-Gewicht | 661 g |
| Maße | 140×110×90 mm |
