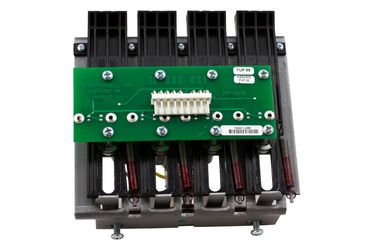

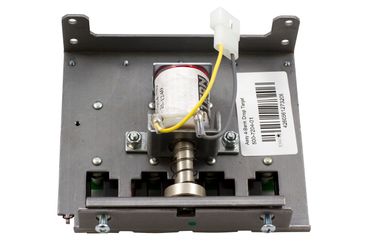

Stern Pinball 4-Bank Drop Target Assembly #500-7204-01

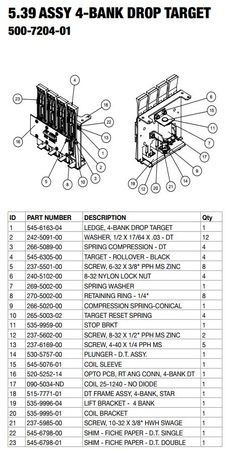

4-Bank Drop Target Baueinheit besteht aus:
1x 545-6163-04 Ledge, 4-Bank Drop Target
12x 242-5091-00 Washer, 1/2 x 17/64 x 0,03 DT
4x 266-5089-00 Spring Compression DT
4x 545-6305-00 Target Rollover schwarz
8x 237-5501-00 Screw, 6-32 x 3/8" PPH MS Zinc
4x 240-5102-00 8-32 Nylon Lock Nut
1x 269-5002-00 Spring Washer
8x 270-5002-00 Retaining Ring 1/4"
1x 266-5020-00 Compression Spring Conical
4x 265-5003-02 Target Reset Spring
1x 535-9959-00 Stop Brkt
2x 237-5602-00 Screw, 8-32 x 1/2" PPH MS Zinc
5x 237-6169-00 Screw, 4-40 x 1/4 PPH MS
1x 530-5757-00 Plunger D.T. Assy
1x 545-5076-01 Coil Sleeve
1x 520-5252-14 Opto PCB, RT Ang Conn, 4-Bank DT
1x 090-5034-ND Coil 25-1240 (ohne Diode)
1x 515-7771-01 DT Frame Assy, 4-Bank, Star
1x 535-9996-04 Lift Bracket 4 Bank
1x 535-9995-01 Coil Bracket
1x 237-5985-00 Screw, 10-32 x 3/8" HWH Swage
1x 545-6798-00 Shim Fiche Paper DT Single
1x 545-6798-01 Shim Fiche Paper DT Double
| Art.-ID | 33104 |
| Zustand | Neu |
| Altersfreigabe | Ohne Altersbeschränkung |
| Varianten-ID | 500-7204-01 |
| Modell | 500-7204-01 |
| Hersteller | Stern Pinball Parts |
| Herstellungsland | USA |
| Inhalt | 1 Stück |
| Gewicht | 1000 g |
| Netto-Gewicht | 0 g |
| Maße | 0×0×0 mm |
