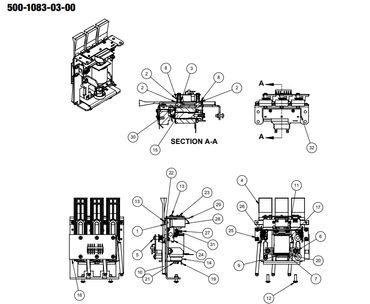

Stern Pinball Flipper KATANA LOCK DOWN POST ASSEMBLY #500-1083-03-00
Stern Pinball Flipper KATANA LOCK DOWN POST ASSEMBLY #500-1083-03-00
Artikelnummer 500-1083-03-00
346,74 EUR
*
Sofort versandfertig
Inhalt
1 Stück
Grundpreis
346,74 EUR / Stück
* inkl. ges. MwSt. zzgl. Versandkosten
Stern Pinball Flipper KATANA LOCK DOWN POST
ASSEMBLY #500-1083-03-00 beinhaltet:
- 1x 545-6163-03 LEDGE, 3-BANK DROP TARGET
- 9x 242-5091-00 WASHER, 1/2 X 17/64 X .03 - DT
- 3x 266-5089-00 SPRING COMPRESSION - DT
- 3x 545-6305-00 TARGET - ROLLOVER - BLACK
- 6x 237-5501-00 SCREW, 6-32 X 3/8" PPH MS ZINC
- 4x 240-5102-00 8-32 NYLON LOCK NUT
- 1x 269-5002-00 SPRING WASHER
- 6x 270-5002-00 RETAINING RING - 1/4"
- 1x 266-5020-00 COMPRESSION SPRING-CONICAL
- 3x 265-5003-02 TARGET RESET SPRING
- 1x 535-9959-00 STOP BRKT
- 2x 237-5602-00 SCREW, 8-32 X 1/2" PPH MS ZINC
- 6x 237-6169-00 SCREW, 4-40 X 1/4 PPH MS
- 1x 530-5757-00 PLUNGER - D.T. ASSY.
- 1x 545-5076-01 COIL SLEEVE
- 1x 520-5252-13 3 BANK DROP TARGET PCB-OPTO, W/ RIGHT ANGLE CONN
- 1x 090-5034-ND COIL 25-1240 - NO DIODE
- 1x 515-7771-03 FRAME ASSY, 3-BANK DROP TARGET W/ TRIP
- 1x 535-9996-03 LIFT BRACKET - 3 BANK
- 1x 535-9995-01 COIL BRACKET
- 1x 237-5985-00 SCREW, 10-32 X 3/8" HWH SWAGE
- 2x 545-6798-00 SHIM - FICHE PAPER - D.T. SINGLE
- 1x 520-7092-00 PCB, 3-BANK DT WHITE LED
- 2x 515-9960-00 PIVOT BRACKET - RESET D.T.
- 4x 232-5209-00 SCREW, 6-32 X 3/16" PPH SEMS
- 2x 545-9794-00 SPLIT BEARING - 4MM
- 1x 535-1470-03 RESET ACTUATOR - 3 BANK D.T.
- 1x 090-5031-00-ND COIL, 32-1800, NO DIODE
- 1x 545-9930-00 FISH PAPER
- 1x 237-6030-00 SCREW, 8-32 X 3/8" PFH 82° U/C MS
- 2x 265-5002-00 TRIP SPRING - TARGET
- 1x 545-9930-01 FISH PAPER, 3-BANK LED PCB
| Art.-ID | 41647 |
| Zustand | Neu |
| Altersfreigabe | Ohne Altersbeschränkung |
| Varianten-ID | 500-1083-03-00 |
| Modell | 500-1083-03-00 |
| Hersteller | Stern Pinball Parts |
| Herstellungsland | USA |
| Inhalt | 1 Stück |
| Gewicht | 1000 g |
| Netto-Gewicht | 730 g |
| Maße | 145×110×90 mm |
